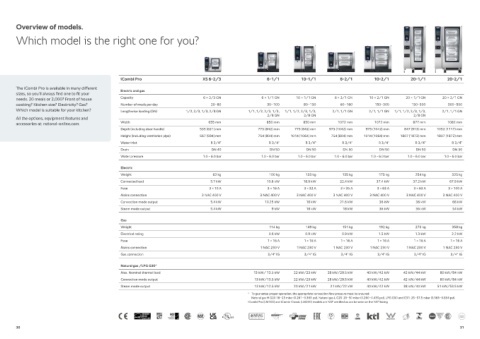

Overview of models.

Which model is the right one for you?

iCombi Pro XS 6-2/3 6-1/1 10-1/1 6-2/1 10-2/1 20-1/1 20-2/1
The iCombi Pro is available in many different Electric and gas
sizes, so you’ll always find one to fit your
needs. 20 meals or 2,000? Front of house Capacity 6 × 2/3 GN 6 × 1/1 GN 10 × 1/1 GN 6 × 2/1 GN 10 × 2/1 GN 20 × 1/1 GN 20 × 2/1 GN
cooking? Kitchen size? Electricity? Gas? Number of meals per day 20–80 30–100 80–150 60–160 150–300 150–300 300–500
Which model is suitable for your kitchen? Lengthwise loading (GN) 1/2, 2/3, 1/3, 2/8 GN 1/1, 1/2, 2/3, 1/3, 1/1, 1/2, 2/3, 1/3, 2/1, 1/1 GN 2/1, 1/1 GN 1/1, 1/2, 2/3, 1/3, 2/1, 1/1 GN
2/8 GN 2/8 GN 2/8 GN
All the options, equipment features and
accessories at: rational-online.com Width 655 mm 850 mm 850 mm 1072 mm 1072 mm 877 mm 1082 mm
Depth (including door handle) 555 (621) mm 775 (842) mm 775 (842) mm 975 (1042) mm 975 (1042) mm 847 (913) mm 1052 (1117) mm
Height (including ventilation pipe) 567 (594) mm 754 (804) mm 1014 (1064) mm 754 (804) mm 1014 (1064) mm 1807 (1872) mm 1807 (1872) mm

Water inlet R 3/4" R 3/4" R 3/4" R 3/4" R 3/4" R 3/4" R 3/4"
Drain DN 40 DN 50 DN 50 DN 50 DN 50 DN 50 DN 50
Water pressure 1.0 - 6.0 bar 1.0 - 6.0 bar 1.0 - 6.0 bar 1.0 - 6.0 bar 1.0 - 6.0 bar 1.0 - 6.0 bar 1.0 - 6.0 bar

Electric
Weight 62 kg 100 kg 133 kg 135 kg 173 kg 254 kg 325 kg

Connected load 5.7 kW 10.8 kW 18.9 kW 22.4 kW 37.4 kW 37.2 kW 67.9 kW
Fuse 3 × 10 A 3 × 16 A 3 × 32 A 3 × 35 A 3 × 63 A 3 × 63 A 3 × 100 A
Mains connection 3 NAC 400 V 3 NAC 400 V 3 NAC 400 V 3 NAC 400 V 3 NAC 400 V 3 NAC 400 V 3 NAC 400 V
Convection mode output 5.4 kW 10.25 kW 18 kW 21.6 kW 36 kW 36 kW 66 kW
Steam mode output 5.4 kW 9 kW 18 kW 18 kW 36 kW 36 kW 54 kW

Gas
Weight 114 kg 149 kg 151 kg 192 kg 273 kg 358 kg
Electrical rating 0.6 kW 0.9 kW 0.9 kW 1.5 kW 1.3 kW 2.2 kW
Fuse 1 × 16 A 1 × 16 A 1 × 16 A 1 × 16 A 1 × 16 A 1 × 16 A
Mains connection 1 NAC 230 V 1 NAC 230 V 1 NAC 230 V 1 NAC 230 V 1 NAC 230 V 1 NAC 230 V
Gas connection 3/4" IG 3/4" IG 3/4" IG 3/4" IG 3/4" IG 3/4" IG

Natural gas /LPG G30*
Max. Nominal thermal load 13 kW/ 13.5 kW 22 kW/23 kW 28 kW/29.5 kW 40 kW/42 kW 42 kW/44 kW 80 kW/84 kW
Convection mode output 13 kW/13.5 kW 22 kW/23 kW 28 kW/29.5 kW 40 kW/42 kW 42 kW/44 kW 80 kW/84 kW
Steam mode output 12 kW/12.5 kW 20 kW/21 kW 21 kW/22 kW 40 kW/42 kW 38 kW/40 kW 51 kW/53.5 kW
* To guarantee proper operation. the appropriate connection flow pressure must be ensured:
Natural gas H G20 18–25 mbar (0.261–0.363 psi). Natural gas L G25: 20–30 mbar (0.290–0.435 psi). LPG G30 und G31: 25–57.5 mbar (0.363–0.834 psi).
iCombi Pro (LM100) and iCombi Classic (LM200) models are NSF certified as can be seen on the NSF listing

30 31
