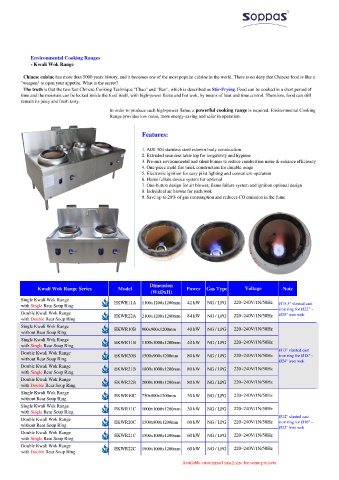

Page 2938 - A.J. Kitchen & Service

Environmental Cooking Ranges
- Kwali Wok Range
Chinese cuisine has more than 5000 years history, and it becomes one of the most popular cuisine in the world. There is no deny that Chinese food is like a
"weapon" to open your appetite. What is the secret?
The truth is that the two fast Chinese Cooking Technique "Chao" and "Bao", which is described as Stir-Frying. Food can be cooked in a short period of
time and the moisture can be locked inside the food itself, with high-power flame and hot wok, by means of heat and time control. Therefore, food can still
remain its juicy and fresh tasty.
In order to produce such high-power flame, a powerful cooking range is required. Environmental Cooking
Range provides low noise, more energy-saving and safer in operation.

Features:

1. AISI 304 stainless steel exterior body construction
2. Extruded seamless table top for longativity and hygiene
3. Pre-mix environmental and silent burner to reduce combustion noise & enhance efficiency
4. One-piece mold fire brick construction for durable usage
5. Electronic ignition for easy pilot lighting and convenient operation
6. Flame failure device system for optional
7. One-button design for air blower, flame failure system and ignition optional design
8. Individual air blower for each wok
9. Save up to 28% of gas consumption and reduces CO emission in the fume

Dimension
Kwali Wok Range Series Model Power Gas Type Voltage Note
(WxDxH)
Single Kwali Wok Range EKWR11A 1100x1200x1200mm 42 kW NG / LPG 220~240V/1N/50Hz
with Single Rear Soup Ring Ø15.5" slanted cast
iron ring for Ø22" ~
Double Kwali Wok Range EKWR22A 84 kW NG / LPG 220~240V/1N/50Hz Ø28" iron wok
with Double Rear Soup Ring 2100x1200x1200mm
Single Kwali Wok Range EKWR10B 900x900x1200mm 40 kW NG / LPG 220~240V/1N/50Hz
without Rear Soup Ring
Single Kwali Wok Range EKWR11B 1100x1000x1200mm 40 kW NG / LPG 220~240V/1N/50Hz
with Single Rear Soup Ring
Ø13" slanted cast
Double Kwali Wok Range EKWR20B 80 kW NG / LPG 220~240V/1N/50Hz iron ring for Ø18" ~
without Rear Soup Ring 1500x900x1200mm
Ø24" iron wok
Double Kwali Wok Range 220~240V/1N/50Hz
with Single Rear Soup Ring EKWR21B 1800x1000x1200mm 80 kW NG / LPG
Double Kwali Wok Range EKWR22B 2000x1000x1200mm 80 kW NG / LPG 220~240V/1N/50Hz
with Double Rear Soup Ring
Single Kwali Wok Range EKWR10C 750x800x1200mm 30 kW NG / LPG 220~240V/1N/50Hz
without Rear Soup Ring
Single Kwali Wok Range EKWR11C 30 kW NG / LPG 220~240V/1N/50Hz
with Single Rear Soup Ring 1000x1000x1200mm
Ø12" slanted cast
Double Kwali Wok Range EKWR20C 1500x800x1200mm 60 kW NG / LPG 220~240V/1N/50Hz iron ring for Ø16" ~
without Rear Soup Ring
Ø22" iron wok
Double Kwali Wok Range EKWR21C 1500x1000x1200mm 60 kW NG / LPG 220~240V/1N/50Hz
with Single Rear Soup Ring
Double Kwali Wok Range EKWR22C 60 kW NG / LPG 220~240V/1N/50Hz
with Double Rear Soup Ring 1800x1000x1200mm

Available customized small size for some projects.
