Fagor Professional Foodservice | Commercial refrigeration

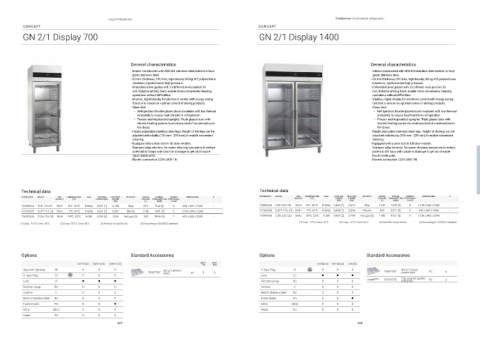

GN 2/1 Display 700 GN 2/1 Display 1400

General characteristics General characteristics
- Interior constructed with AISI-304 stainless steel exterior in food - Interior constructed with AISI-304 stainless steel exterior in food
grade stainless steel. grade stainless steel.
- 60 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane - 60 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane
insulation, injected under high pressure. insulation, injected under high pressure.
- Embedded inner guides with 23 different level position 55 - Embedded inner guides with 23 different level position 55
mm distance among them, enable more conveniente cleaning mm distance among them, enable more conveniente cleaning
operations without difficulties. operations without difficulties.
- Intuitive, digital display for electronic control with energy saving - Intuitive, digital display for electronic control with energy saving
function to ensure an optimal control of storing products. function to ensure an optimal control of storing products.
- Glass door - Glass door
• Refrigeration Double-glazed doors insulated with low thermal • Refrigeration Double-glazed doors insulated with low thermal
emissivity to reduce heat transfer in refrigeration. emissivity to reduce heat transfer in refrigeration.
• Freezer and tropicalized uprights: Triple glazed door with • Freezer and tropicalized uprights: Triple glazed door with
electric heating system to avoid any kind of condensation in electric heating system to avoid any kind of condensation in
the doors. the doors.
- Height-adjustable stainless steel legs. Height of the legs can be - Height-adjustable stainless steel legs. Height of the legs can be
adjusted individually (130 mm - 200 mm) to enable convenient adjusted individually (130 mm - 200 mm) to enable convenient
cleaning. cleaning.
- Equipped with a door lock in full door models. - Equipped with a door lock in full door models.
- Stamped edge interiors, for easier cleaning operations to reduce - Stamped edge interiors, for easier cleaning operations to reduce
potential dirt traps with a built-in drainage to get rid of waste potential dirt traps with a built-in drainage to get rid of waste
liquid inside units. liquid inside units.
- Electric connection 220V-240V 1N - Electric connection 220V-240V 1N

Technical data Technical data

-
REFERENCE MODEL FRE- TEMPERATURE GAS COOLING ELECTRIC DEFROST GROSS ANNUAL ENERGY DIMENSIONS € REFERENCE MODEL FRE- TEMPERATURE GAS COOLING ELECTRIC DEFROST GROSS ANNUAL ENERGY DIMENSIONS €
QUENCY (ºC) POWER (kW) POWER VOLUME CONSUMPTION EFFICIENCY QUENCY (ºC) POWER POWER VOLUME CONSUMPTION EFFICIENCY
(kW) (L) (kWh) CLASS (kW) (kW) (L) (kWh) CLASS
19089464 CUP-11G GD 50Hz 0ºC +8 ºC R-600a 0,361 (1) 0,186 Stop 610 904 (5) B 653 x 842 x 2040 - 19089468 CUP-22G GD 50Hz 0ºC +8 ºC R-600a 0,436 (1) 0,212 Stop 1332 1369 (5) B 1318 x 842 x 2040 -
19106095 CUPT-11G GD 50Hz -2ºC +8 ºC R-600a 0,361 (1) 0,361 Electric 1186 1981 (5) C 1318 x 842 x 2040 - 19106098 CUPT-22G GD 50Hz -2ºC +8 ºC R-600a 0,436 (1) 0,896 Electric 543 3321 (5) D 653 x 842 x 2040 -
19097604 CUN-11G GD 50Hz -18ºC -22ºC R-290 0,535 (2) 0,58 Hot gas (3) 543 5906 (5) F 653 x 842 x 2040 - 19099968 CUN-22G GD 50Hz -18ºC -22ºC R-290 0,907 (2) 0,749 Hot gas (3) 1186 9721 (5) F 1318 x 842 x 2040 -
(1) Evap. -10°C/ Cond. 45°C (2) Evap. -25°C/ Cond. 45°C (3) Remote Group Electric (5) According to EN23953 standard
(1) Evap. -10°C/ Cond. 45°C (2) Evap. -25°C/ Cond. 45°C (3) Remote Group Electric (5) According to EN23953 standard

Options Standard Accessories Options Standard Accessories

MUP- MUP-
CUP-11G GD CUPT-11G GD CUN-11G GD 11G 22G CUP-22G GD CUPT-22G GD CUN-22G
Opposite Opening OP O O O GN 2/1 EPOXY G Type Plug CI O O O GN 2/1 Epoxy
19097787 GRID pc 3 6 19097787 coated grid PC 6
G Type Plug CI O O O Lock LC • • • Tray support guides
Lock LC • • • Remote Group RG O O O 19014778 l=562mm PC 3
Remote Group RG O O O Castors C O O O
Castors C O O O Back in Stainless Steel BS O O O
Back in Stainless Steel BS O O O Frame heater FH O O •
•
Frame heater FH O O 60Hz 60Hz O O O
60Hz 60Hz O O O Pedal PD O O O
Pedal PD O O O

267 268
